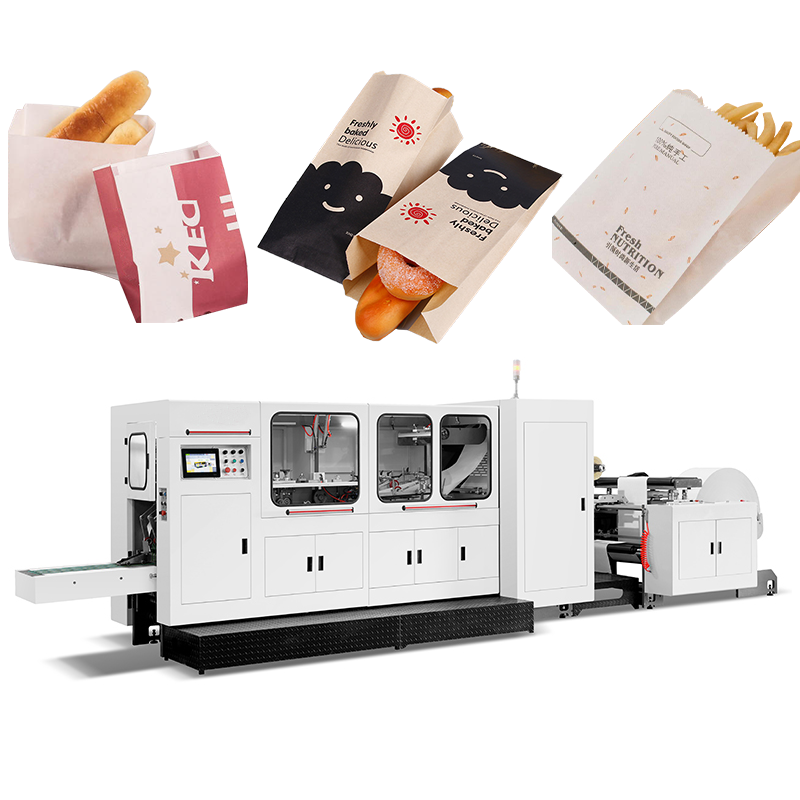

FULLY AUTOMATIC HIGH SPEED SHARP BOTTOM PAPER BAG MACHINE

This machine is used for rolls of primary color paper or printing rolls such as kraft paper, glossy paper, medical paper, etc. The paper bag process consists of roll discharge (hydraulic feeding, automatic correction, constant tension), middle (side) seam gluing, color code tracking, raw material into a cylinder, fixed-length pulling and breaking, bottom gluing, bottom folding , The bottom of the bag is formed and the finished bag is finished in one time This machine is easier to operate, more efficient, and more stable. It is an ideal equipment for producing various paper bags, bread bags, snack food bags, bread bags, dried fruit bags and other environmentally friendly paper bags.

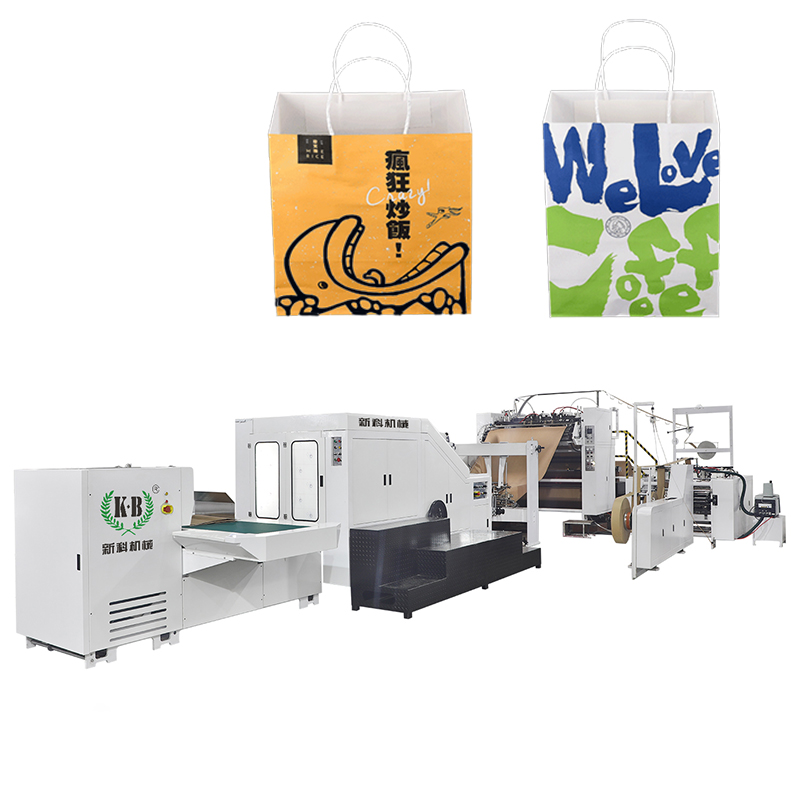

AUTOMATIC SQUARE BOTTOM PAPER BAG MACHINE WITH ROUND ROPE HANDLE

This paper bag machine is specially designed for the production and handling of shopping paper bags, it uses paper round ropes and web paper in the machine to automatically produce twisted processing, then transported by conveyor belt to paste the paper in the main color and printed roll, then by hand gluing the side paper, forming, cutting, opening the bottom, gluing the bottom, closing the bottom and conveying out of the bag, the whole process is completed simultaneously. Therefore, this really shows that the machine is fully automatic production can effectively save labor costs.

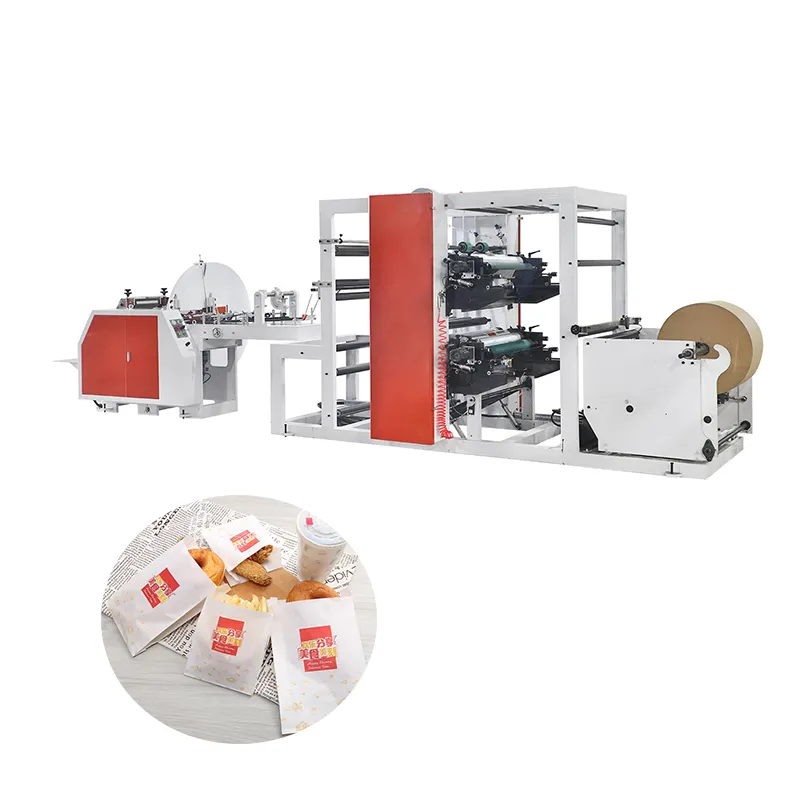

V BOTTOM PAPER BAG MACHINE WITH 2 COLOR PRINTING

This machine is used for primary-color paper or printed web paper. The machine completes the production of pointy bottom paper bags at one time. This machine can be a variety of specifications of paper bags, with fast speed, high production efficiency, is the ideal equipment for paper bag production This machine is composed of drum feeding, side glue, printing paper electric eye tracking base paper into a drum, fixed length traction cutting, bag bottom indentation opening bottom, bag bottom gluing bottom forming, bag finishing. The whole machine is centrally controlled by PLC touch screen, and the length of paper bag is controlled by servo motor
